Published on 2025-11-10
A small design can make a big difference in the medical field—IV sets are one example. These essential IV set components allow healthcare professionals to provide targeted and timely care, from simple hydration to complex therapies. So, how did these IV sets come to be, and how are they manufactured to ensure they do their job?
Table of Contents

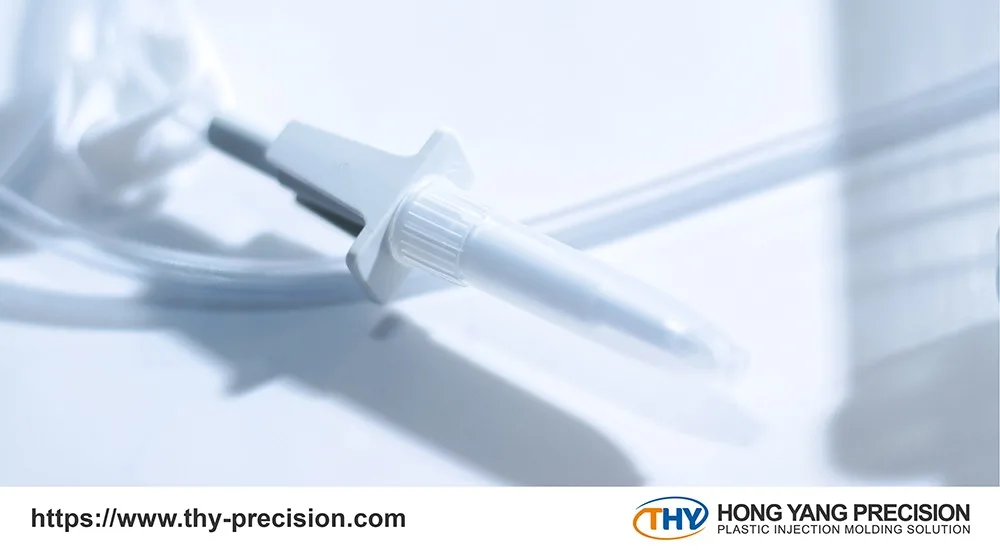

IV Set Components: A Breakdown of Key Parts and Their Functions
IV (Intravenous) sets are the lifelines of modern medical care. They deliver fluids, medication, nutrients, or blood directly into a patient’s bloodstream.
IV sets are used for fluid replacement, medication delivery, nutritional support, and blood transfusions. The quality and functionality of these IV set components directly impact the effectiveness of patient treatment.
IV set components include:
Drip chamber
A transparent chamber that shows the fluid drip rate and prevents air from entering the tubing.
Tubing
Flexible, medical-grade tubing that carries the fluid from the IV container to the patient.
Needle/Catheter
For long-term IV therapy, catheters are inserted into the patient’s vein, while needles are used for single-dose injections.
Injection port
A self-sealing port on the tubing is used to inject additional medication.
Flow regulator
A device that controls the fluid flow rate and allows drip speed adjustment.
IV connector
The IV connector is a secure junction that maintains a reliable connection between the IV set and the patient’s catheter.
Clamps
Clamps help stop or start liquid flow through the tubing and prevent backflow.
Filter
A filter removes matter, air, or microorganisms from the fluid to prevent vascular complications.
IV Bag or Container
The bag or container that holds the fluid, medication, or blood.
Spike
The spike is a sharp component designed to pierce the IV bag or container.
Air vent
The vent allows air to enter the IV bag and replace the administered fluid.
Y-Site
A connection point that allows multiple fluids to be delivered simultaneously.
Back check valve
The back check valve is a one-way valve that prevents the backflow of fluid into the IV tubing.
Luer lock connector
The Luer lock connector is a connection point that seals components to minimize leaks and disconnections.
Learn more
Medical Components Manufacturing: Master 6 Core Technologies

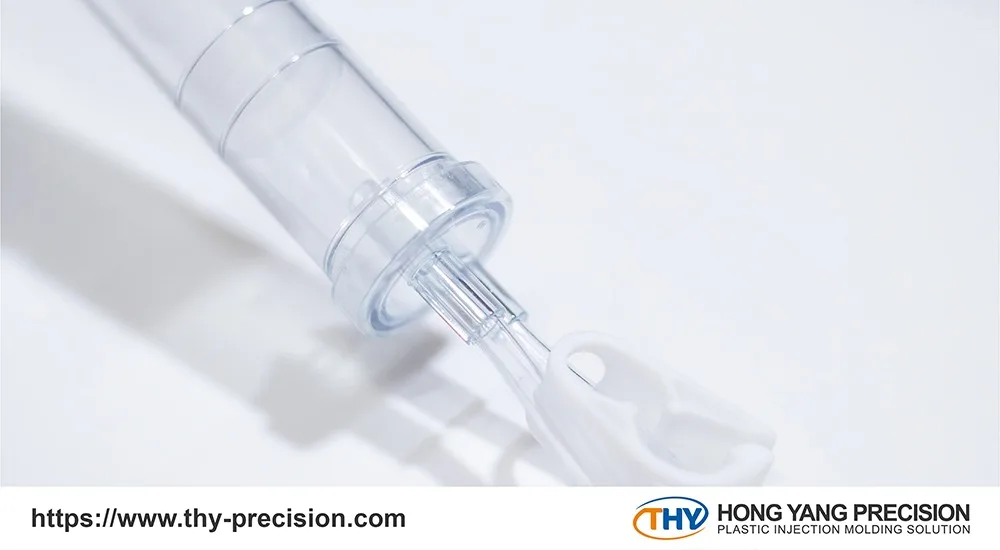

Understanding the Four Main Types of IV Sets and Their Uses
Different medical situations call for various types of IV sets. Here are the four main types used in hospitals:
1.Filtered IV sets
A filtered IV set has a micron filter that sifts out particles and prevents them from entering the patient’s bloodstream. This protects the patient from infection or complications like phlebitis and embolism.
The filters come in various sizes, from 5 microns to 22 microns so that they can filter out particles of any size.
2.Vented IV sets
Vented IV sets have a small hole above the drip chamber. Medical staff can open or close the vent to control airflow. Gravity and air pressure push the fluid down the tubing and to the patient.
3.Non-vented IV sets
Since non-vented IV sets don’t include a removable air vent, medical staff must prime or fill the tubing with IV fluid to remove the air before using one. These sets are used with collapsible bags or flexible containers because the bag will shrink as the liquid flows to the patient.
4.Gravity tubing
Gravity tubing, the most common type of IV set, consists of a plastic bag hung from a hook above the patient’s bed. It’s perfect for delivering fluids that don’t need to be administered quickly. Since gravity is the main force pushing the fluid, it flows slowly and steadily into the patient’s bloodstream.
Behind the Scenes: The Process of Manufacturing IV Set Components
From raw materials to a finished product, manufacturers must follow strict standards to produce quality IV sets.
1.Material selection and preparation
Medical-grade plastics, such as PVC or DEHP-free materials, are top choices because they are biocompatible, flexible, and don’t react with medications. These materials undergo rigorous testing to meet stringent quality standards before manufacturing begins.
Many IV set components, such as rubber bulbs and isoprene pads, are also pre-made by specialized suppliers.
2.Injection molding of components
Next, those materials are shaped into different parts of the IV set. Molten plastic is injected into the mold and cooled to achieve the desired shape.
Advanced molding techniques play a big part in ensuring accuracy and consistency in dimensions.
3.Assembly and integration
The assembly process includes joining the tubing and attaching drip chambers and filters. This occurs in a sterile environment, like an ISO 8 cleanroom, to prevent particles and dust from contaminating the product.
This rigorous assembly process ensures the integrity and functionality of IV set components, providing patients with a safe and reliable medical experience.
4.Sterilization and quality control
Then, the IV sets are sterilized with ethylene oxide gas or gamma irradiation to kill bacteria or viruses. Quality control checks, such as leak testing and flow rate validation, are done throughout these stages to verify the integrity and performance of the IV sets.
5.Packaging and distribution
Once the IV sets pass all quality checks, they’re carefully packaged to keep them clean during transportation. Each set is individually packed in a small polyethylene bag or paper pouch.
Then, those sets are placed into larger polyethylene bags or small boxes. Finally, these are packed into outer cartons for shipping and distribution.

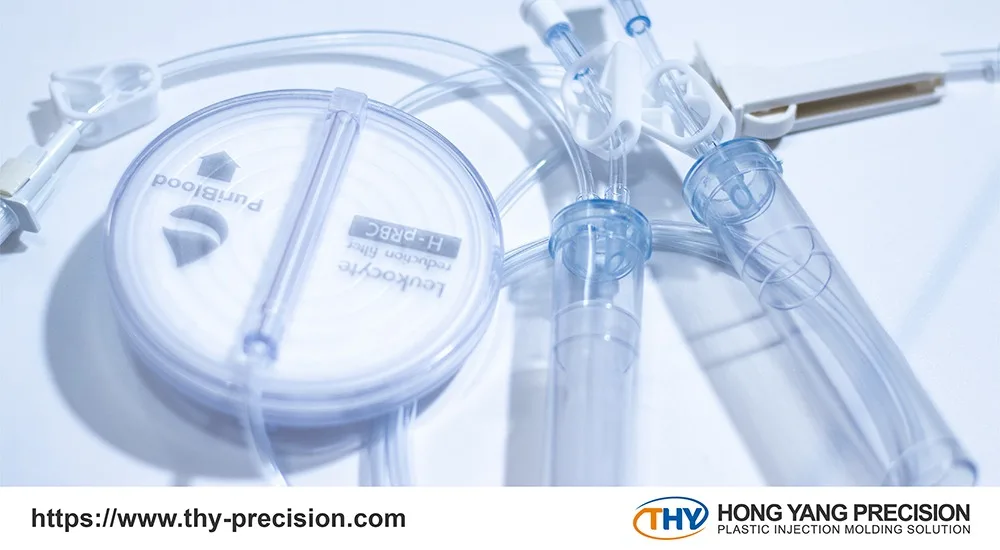

IV Set Components: The Future of Medical Infusion Technology
The IV sets and accessories market was valued at 1,203 million dollars in 2023 and is expected to reach 1,747 million by 2032. Several key factors are driving this growth.
For one, patients want to receive care from the comfort of their homes. This has increased the need for user-friendly, portable IV sets that are easy to administer without constant supervision.
The adoption of biocompatible materials is also leading to the creation of more IV sets from innovative materials that are less likely to cause complications.
Finally, there’s a growing need for more personalized experiences. Patients and healthcare providers seek IV sets offering more customizable and flexible treatment options.
Future-Proof Your IV Set Production with Advanced Manufacturing
When creating reliable medical devices, choose a trusted partner with a proven track record. With years of experience in medical product manufacturing, THY Precision has gained a deep understanding of component design and production and the technology to back it up.
Our commitment to precision injection molding and quality control ensures that every component is optimized for performance, safety, and reliability. We believe in creating win-win solutions through rigorous decision-making processes, offering the best outcomes for our customers while maintaining high ethical standards. Get a quote now and experience the difference of a true partnership.
